| Project | unit | 10-inch | ||||||

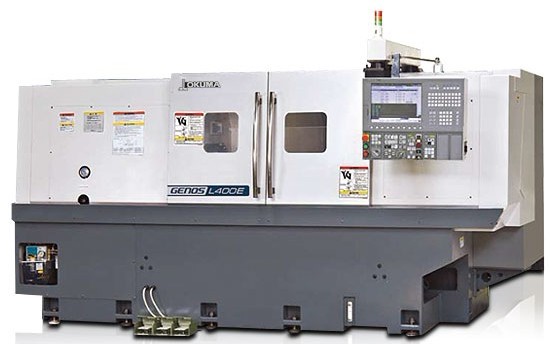

| GENOS L400 | GENOS L300-M | |||||||
| L400 | L400E | L300-M | L300E-M | L300-MY | L300E-MY | L300-MW | ||
| Bed rotary diameter | mm | Ø520 | ||||||
| The largest processing diameter | mm | Ø390 | Ø410 | Ø300 | ||||
| The maximum length of processing | mm | 500 | 1,100 | 450 | 1,060 | 450 | 1,050 | 150 |
| Spindle nose | JIS A2-8 | |||||||
| Spindle speed | rpm | 3,000 | ||||||
| Spindle diameter | mm | Ø80 | ||||||
| Spindle motor | KW | 15/11 | ||||||
| Fast moving（X,Z） | m/min | X:20,Z:25 | X/Z:20 | X:20,Z:25 | X/Z:20 | X:20,Z:25 | X/Z:20 | X:20,Z:25 |
| Feed rate（X,Z,Y） | mm/rev | 0.001~1,000 | ||||||
| Controller | OSP-P200L | |||||||
